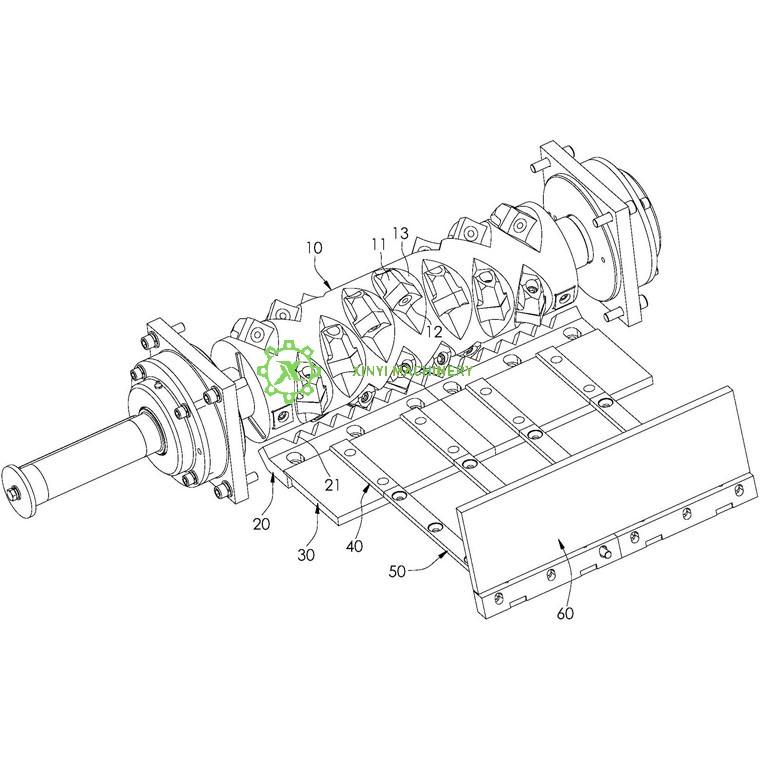

A Single Shaft Shredder is a versatile and robust workhorse in the size reduction industry, known for its powerful torque and ability to handle a wide variety of materials. Its design, featuring a single rotating shaft with cutting rotors that work against a stationary bed knife, makes it particularly well-suited for specific types of plastic waste.

Here is a detailed breakdown of the waste plastic materials that are suitable for processing with a single shaft shredder machine, categorized for clarity.

Overview: The Strength of a Single Shaft Shredder

The primary strength of a single shaft shredder lies in its high-torque, shearing-and-tearing action. It's not just an impact breaker; it's a powerful cutter that can manage tough, dense, and irregularly shaped materials. This makes it ideal for the primary size reduction of large and bulky plastic items.

Suitable Plastic Materials for a Single Shaft Shredder

Category 1: Large, Bulky, and Dense Items

These are the classic applications where single shaft shredders excel.

· Purges, Lumps, and Purgings: The leftover plastic from injection molding or extrusion machines. They are extremely dense and challenging to break. A single shaft shredder's power is perfect for this task.

· Plastic Pipes and Fittings: Large-diameter HDPE, PVC, or PP pipes. The shredder can consume long pipes and reduce them into uniform chips.

· Plastic Drums and Containers: Large IBC totes, HDPE drums, and barrels.

· Injection Molding Sprues and Runners: The skeleton left over after the molded parts are removed.

· Plastic Pallets and Crates: Often made of HDPE, these are bulky and require a powerful machine for the initial breakdown.

Category 2: Film, Bags, and Flexible Materials (with considerations)

While single shaft shredders can handle these, they require specific design features to prevent wrapping.

· PP Woven Bags (Raffia bags): Commonly used for rice, fertilizer, and animal feed.

· Stretch Film and Shrink Wrap: LDPE/LLDPE films from packaging and shipping.

· Agricultural Film: Used in greenhouses and for silage.

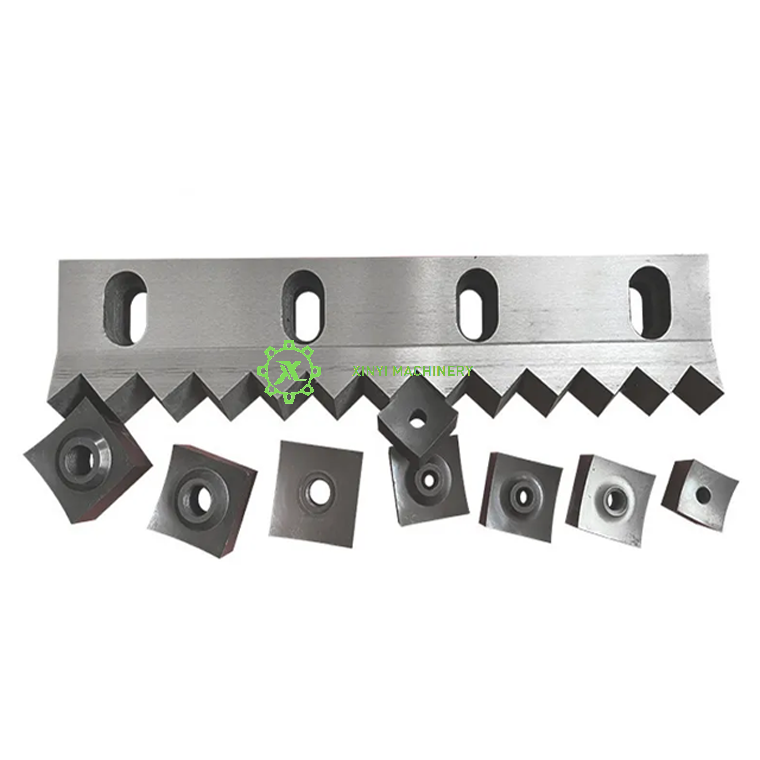

· Consideration: To efficiently process film, the shredder should be equipped with a "ripper blade" or "hook blade" design. These blades are specifically engineered to grab, tear, and pull in flexible materials instead of letting them wrap around the shaft. A "push ram" is also crucial here to continuously force the light, flexible material into the cutting chamber.

Category 3: Mixed, Contaminated, and Composite Materials

Single shaft shredders are often used as a pre-shredder in recycling lines for complex waste streams.

· Household and Industrial Plastic Waste: Mixed plastics from waste collection streams.

· Electronic Waste (E-Waste): To liberate and reduce the size of plastic casings from computers, printers, monitors, etc.

· Automotive Shredder Residue (ASR): The mixed plastic-rich fraction left after cars are shredded for metal.

· Multi-Layer Packaging: While challenging, the shearing force can break down these materials for further processing.

Category 4: Fibers and Textiles

This overlaps with plastics, as many textiles are synthetic.

· PET Bottle Bales: Whole bales of plastic bottles can be fed into a large, powerful single shaft shredder.

· Synthetic Carpets and Rugs: Often made from PP or Nylon.

· Non-woven Fabrics: Like PP geotextiles or medical fabrics.

Materials That Require Caution or a Different Machine

While versatile, a single shaft shredder is not always the best choice for every plastic.

· Extremely Hard or Brittle Plastics: Certain filled plastics (e.g., with high glass or mineral content) can be highly abrasive and quickly wear down standard blades. For these, a shredder with specialized, wear-resistant cutting geometry is recommended.

· Sticky or Heat-Sensitive Materials: Some plastics, like certain PVCs or hot melts, can become gummy and re-agglomerate due to the heat generated by the shredding process. A water-cooled system or a different cutting mechanism might be needed.

· Pure, Clean Film in High Volume: For dedicated film recycling, a double-shaft shredder is often more efficient as its twin shafts are inherently better at gripping and tearing film without the same risk of wrapping.

Key Advantages of Using a XINYI Single Shaft Shredder for Plastics:

· High Torque & Powerful Cutting: Designed to handle the toughest and most unpredictable plastic waste.

· Controlled Output Size: The screen underneath the rotor determines the final particle size, providing a uniform chip or flake.

· Push Ram System: A hydraulic ram forces material into the rotor, ensuring consistent feeding and higher throughput, especially for light materials.

· Robust Construction: Built with heavy-duty components to withstand the demands of a harsh industrial environment.

· Versatility: As a primary shredder, it can prepare a wide range of materials for a secondary granulator or crusher.

Summary Table

Conclusion:

For XINYI MACHINERY as a leading manufacturer, the single shaft shredder is a foundational machine in any plastic recycling setup. It is the ideal solution for primary reduction of large, bulky, dense, and mixed plastic waste. When configured with the correct rotor design (e.g., ripper blades for film) and supported by a push ram, its application range becomes incredibly broad, making it one of the most versatile and essential pieces of equipment in the industry.
