Working Principle of a Plastic Mixer Machine / Plastic Mixer
A plastic mixer machine is a mechanical blending machine. Its working principle is to create forced relative motion between plastic pellets, powders, flakes, regrind, color masterbatch, and additives so they become uniformly mixed. It does not usually change the material chemically; it performs physical homogenization.
Core Mixing Actions
Most plastic mixers use one or more of these actions:
· Convection mixing – bulk movement of material from one area to another, such as up/down or side-to-side.
· Shear mixing – velocity differences between moving blades and material break up agglomerates and disperse additives.
· Diffusion mixing – particles migrate at boundaries, improving final uniformity.
Typical Working Cycle
1. Loading – plastic material and additives are fed into the mixing barrel, usually at 50–80% of capacity.
2. Driving – an electric motor drives the main shaft through a reducer, belt, or direct drive.
3. Mixing – the rotating screw, ribbon, paddle, impeller, or drum baffles repeatedly lift, throw, fold, shear, and tumble the material.
4. Discharging – after the set mixing time, a discharge valve or door opens and the homogeneous mixture is released.
Common Types and Their Principles
Type | Working Principle | Typical Use |

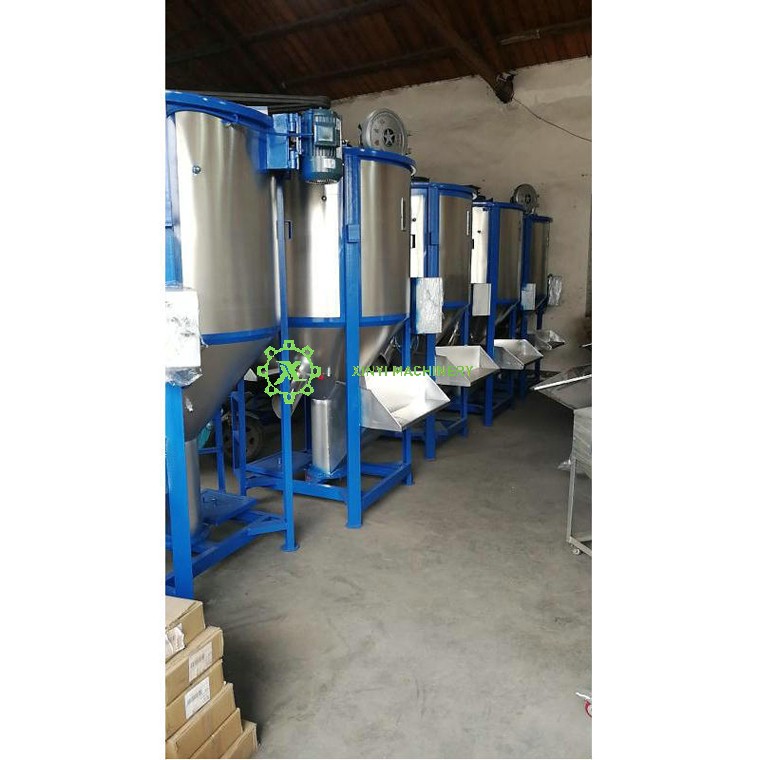

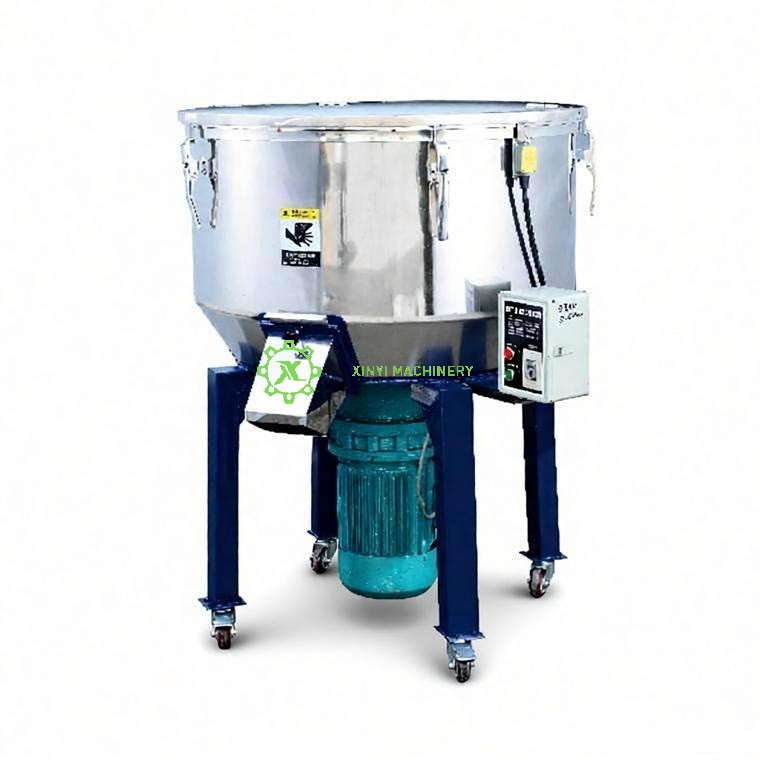

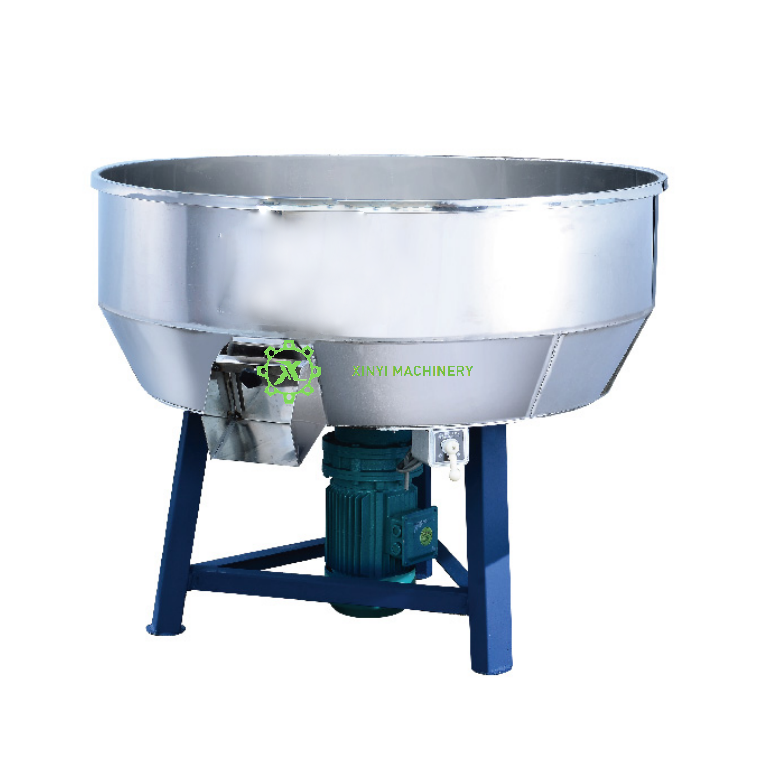

Vertical screw mixer | Central screw rotates and lifts material from bottom to top; material is thrown outward and falls back through the gap, repeating the cycle. | Color mixing, pellets, masterbatch |
Horizontal ribbon mixer | Inner and outer ribbons rotate in opposite directions, creating counterflow and uniform blending. | Powders, granules, dry blends |
High-speed mixer | High-speed impeller creates a vortex, strong shear, and friction; material may heat up. | PVC dry blend, hot/cold mixing lines |
Tumbler / drum mixer | Rotating drum with baffles gently tumbles material by gravity. | Fragile pellets, simple color mixing |
Key Factors
Mixing quality depends on capacity, motor power, shaft speed, mixing time, loading ratio, bulk density, and particle size. Overfilling or underfilling can reduce mixing efficiency.
XINYI MACHINERY
XINYI MACHINERY is a China leading manufacturer of all kinds of mixers, mixer machines, crushers, shredders, balers, plastic granulators, blade grinding machines, crushing machine blades, and other recycling machines. For plastic mixers, the basic principle remains the same: mechanical agitation generates convection, shear, and diffusion until the plastic material and additives are evenly blended. Official website of XINYI MACHINERY: https://www.plastic-crushers.com
