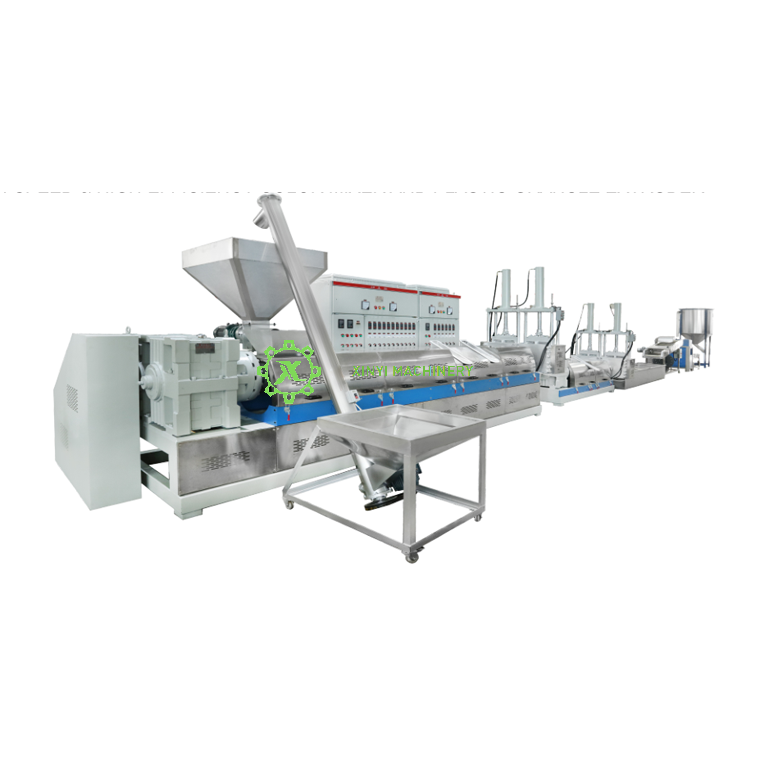

COLOR MIXED PLASTIC PELLETIZING MACHINE LINE XY07001
Product parameters

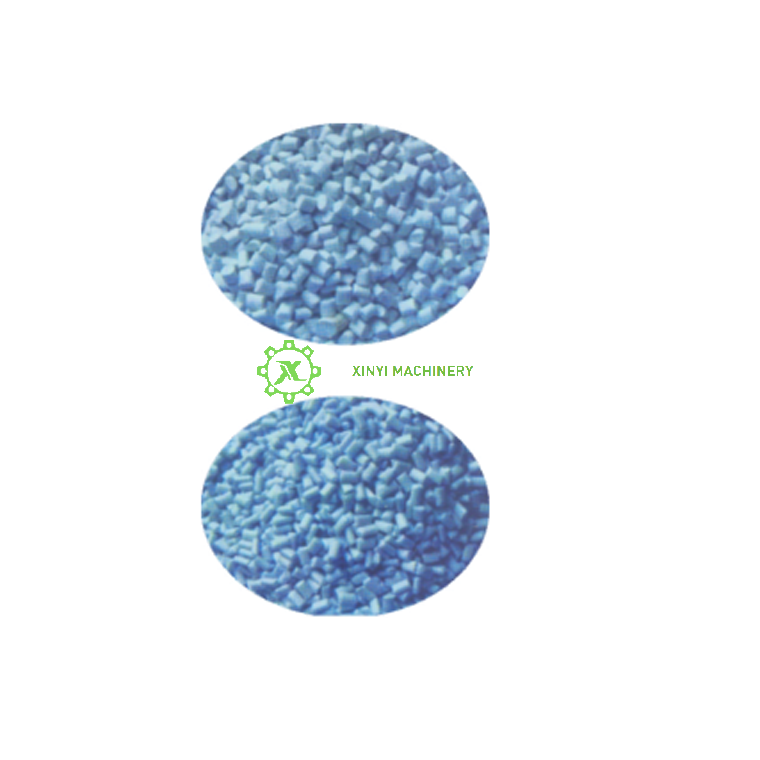

High-speed & High-efficiency Color Mixed Plastic Pelletizing Machine Line is a professional unit for color mixing and granule making of engineering plastics(ABS, PS, PP, PC). Equipped with advanced technology and configuration, this machine is suitable for high speed mixing, plasticization and exhaust of engineering plastics to allow the material o be colored evenly with smooth surface, compact granular and high output (120mm model can produce up to 450-500kg/hour).
Main Features:
1.The host machine is equipped with the venting screw with high length-diameter ratio and strengthened mixing mechanism to ensure the materials can be mixed, plasticized and vented efficiently,
2.The cylinder is equipped with spiral copper circulating water cooing system for forced cooling purpose. The high-precision control is adopted for heating to ensure a better plasticity and stable extruding performance without color change.
3.The low-noise reducer is used with forced lubrication function to ensure the host machine can continuously run at a high speed
4.Equipped with 30-cutter cylinder granule cutter, making the granules even with low noise.
Technical Parameter:
Model | XY07001-120/35:1, 140/35:1 |
Suitable Material | ABS, PS, PP, PC |
Production Capacity | 400-500kg/h (It is approximate data, it depends on different raw materials) |
Screw Diameter (mm) | 120-140 |
Length-diameter Ratio of Screw | 35:1 |
Screw Material | 38CrMoAIA |
Cylinder Material | 38CrMoAIA |
Power | 90KW, Speed adjustment |
Configuration of Cooling Water Tank | Stainless Steel cooling water tank (4m) |
Configuration of Granule cutting machine | 30mm cutter circular tray, 5.5KW speed adjustment. |
