Is Single Stage Extruder Granulator Ok for Clean PP PE Flakes Materials?

To give you a clear, practical answer:

Yes, a singlestage extruder granulator is generally perfectly fine for clean PP/PE flakes.
In fact, for clean, wellsorted, and reasonably dry postindustrial or postconsumer flakes, a singlestage machine is often the most costeffective and reliable choice.

However, “clean” can mean different things in recycling. Let me break down when a singlestage works well, and when you might want a twostage system instead.

✅ Singlestage is OK if your flakes are:

· Free of heavy contamination (no paper, wood, metal, or large amounts of other plastics).

· Low moisture – surface dry (e.g., from centrifuge or hot air drying), not wet straight from washing.

· Uniform in size – ideally regrind or flakes under ~10 mm.

· Not heavily printed or containing volatiles (e.g., solventbased inks, adhesives, or foam residues).

In these cases, a welldesigned singlestage extruder (with good venting and filtration) will produce highquality pellets at a lower investment and operating cost than a twostage machine.

⚠️ Limitations of singlestage for PE/PP flakes

Even with “clean” material, singlestage extruders can struggle if:

 When to choose twostage instead

A twostage extruder (sometimes called “motherson”) is better if:

· Your flakes are washed but not fully dried (e.g., moisture >1–2 %).

· You process printed or laminated PP/PE (ink vapors need strong vacuum degassing).

· You want extradense, bubblefree pellets for highend applications.

· You plan to run mixed or lowergrade material later.

Twostage systems also allow stable meltfiltration under low pressure fluctuation because the second extruder acts as a melt pump.

 A note on XINYI MACHINERY (A Leading China manufacturer of all kinds of granulators, extruders, extruder granulation machines, screw and barrels of pelletizng machines and injection machines, etc.)

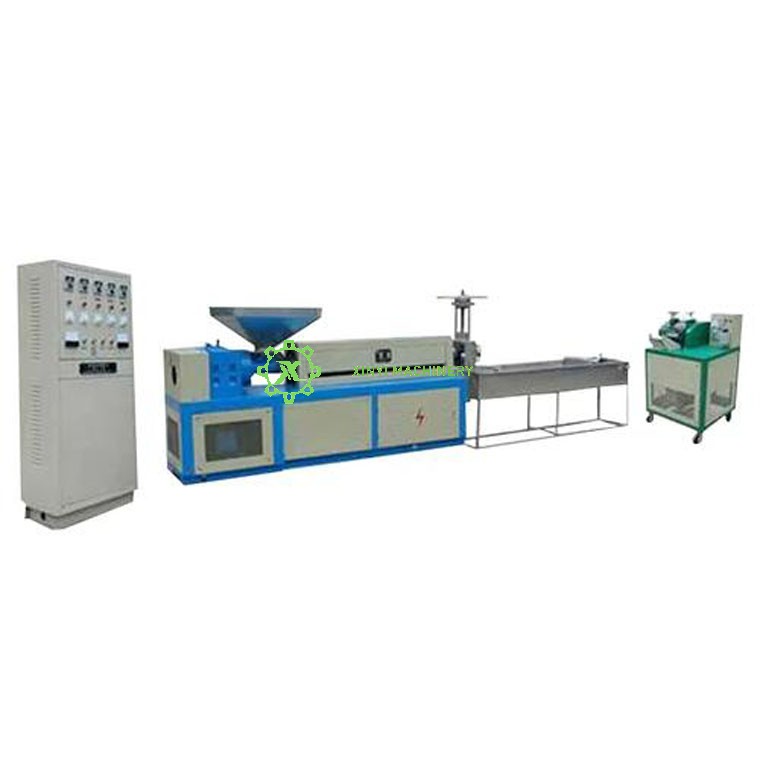

XINYI offers both singlestage and twostage granulators. Their singlestage units designed for PP/PE flakes often include:

· High L/D ratio screws (≥36:1)

· Double vacuum venting

· Hydraulic screen changers

So if you buy from XINYI, XINYI MACHINERY’s singlestage machine is likely optimized for clean flakes and would perform well.

✅ Final answer for your decision
